Maritime Reporter Article By John Haynes - Operations Director Shock Mitigation

The support boat has to be able to tow an AC72 home faster than the wind speed, which can mean towing at 25 knots. The boat also needs the puling power to be able to right an AC72 after a capsize – fast!! The crews try to avoid the dangers of a capsize but it is a possibility that support teams must plan for.

Tragically in May 2013, British Olympic sailing champion Andrew ‘Bart’ Simpson died after the Swedish America’s Cup craft he was sailing capsized and broke apart in San Francisco Bay. Simpson, a 36 year old two-time Olympic medallist, suffered multiple blows to his head and body in the accident involving the 72-foot Artemis Racing catamaran. The San Francisco medical examiner’s report said, ‘In the moments before it capsized, the yacht was turning downwind in a so called bear-away manoeuvre while travelling at about 30 knots, with wind of about 20 knots. The front of the vessel then dipped beneath the surface, the port hull broke and inverted on top of the wing.’

Chase Boats & Support Boats

Most conventional power craft cannot fulfil the demanding task of supporting the 72 foot Americas Cup catamarans that can accelerate to 40 knots in seconds. The power boat ride quality has to allow for keeping up with an AC72 for an entire day, regardless of how fast the sail boat is going or what the sea conditions are like. The objective is to have a high speed craft that does not fatigue the crew and keeps the team’s paramedic and dive crews ready for action.

This is high stakes racing with multi-million pound investments by owners and sponsors. With money of less object than usual it is interesting to compare the various designs that the teams selected as Chase Boats. The racers also require a high performance Umpire Boat capable of following close to the action and providing instant visuals of the competition as it unfolds.

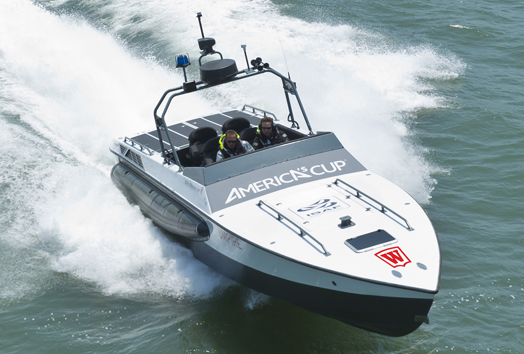

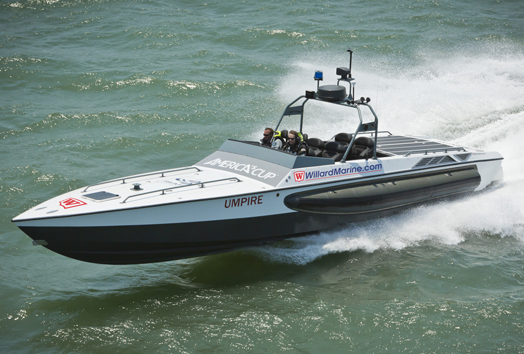

The Offshore Interceptor - America’s Cup Umpire Boat

A Willard Marine High Speed Interceptor was chosen by the Americas Cup Racing Association as the Umpire Boat for the 2013 Americas Cup. The 43 foot (13 metre) craft is powered by twin Cummins 600 hp inboard diesel engines and surface drive system. The Interceptor was developed for military use from a Scarab offshore racing design and can achieve speeds over 60 knots.

Willard Marine teamed up with Larry Smith of Team Scarab to develop the design. Team Scarab has a 30 year heritage of designing and building world champion offshore race boats. The Interceptor was initially prototyped in response to a request by the US Navy for a high-speed combat mission boat. The 43 Assault is also ideal for intercepting and boarding boats and vessels in the open ocean.

Willard worked closely with Team Scarab to refine their Deep V stepped hull design in order to meet the US Navy requirements, including shock mitigation seats and light weight engines. The Interceptor also has a Supplemental Stability System (S3) that increases the stability, passenger comfort and safety of heavily loaded high speed craft. The variable geometry of the sponsons increases hull efficiency and aft buoyancy where the fuel, engine and passenger loads are.

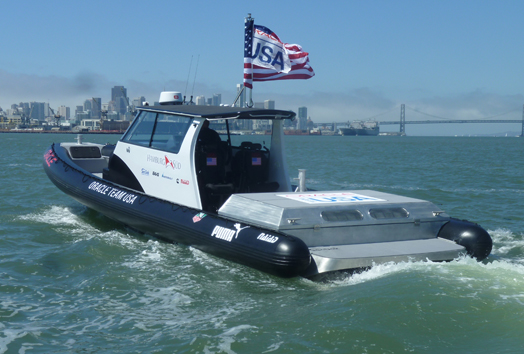

The Rigid Hull Inflatable Boat - Oracle Racing Team USA Chase Boat

Naiad Inflatables of Newport produced two custom built 42 foot (12.9 metre) RHIBs for Oracle Racing Team USA to support the Defender AC72 Yachts. Twin Yanmar 370hp inboard engines allow the chase boat to maintain the power, agility and endurance required to support the yachts through the variable conditions of San Francisco Bay at up to 45 knots.

Naiad has a strong legacy of involvement in the Americas Cup, dating back to tenders produced for Challenge New Zealand for the 1992 event in San Diego. Naiad was the first company to develop a RHIB over 40 feet specifically designed to carry the large fully battened mainsails, unique at the time to the IACC class of Americas Cup race yachts.

These vessels were used by Team New Zealand which successfully challenged for and won the Americas Cup in 1995, and successfully defended the Americas Cup in 2000. In addition to Team New Zealand, two of the challengers had Naiad boats custom built for the 2000 Americas Cup. The 46 foot (14 metre) Naiad Ranger was the first shaft driven inflatable, she was custom built to tow two of Young Americas IACC yachts simultaneously. This platform spawned a whole new class of diesel shaft commercial RHIB vessels for towing and pilot boat use.

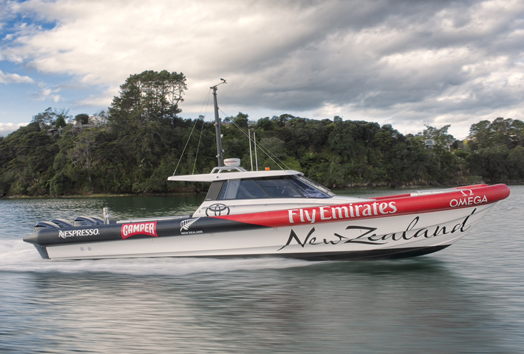

The High Speed Catamaran - Emirates Team New Zealand Chase Boat

Morrelli & Melvin designed a 45 foot (13.7 metre) 1200 hp high-speed catamaran as Tender and Chase Boat for Emirates Team New Zealand AC72. The concept was developed in collaboration with ETNZ and Salthouse Boats. The ETNZ chase boat is powered by four 300hp Yamaha V6 four-stroke outboard engines and has a top speed of 58 knots.

The fibreglass hull is topped with inflatable tubes allowing it to slip in beside the AC72. The ETNZ boat includes a protected main deck cabin, head, and large storage area under the foredeck.

The craft has four engines to deliver the power needed to right a capsized AC72. Running all four engines at 3000 rpm gives 30 knots and the boat uses 100 litres of fuel an hour. The boat holds 1700 litres of fuel which gives a range of 510 nautical miles or 17 hours running time at 30 knots.

Sitting On The Dock Of The Bay

Chris Sitzenstock gave an overview of conditions onboard the Oracle Team USA Chase Boat, ‘the sea state in the Bay was really everything you can imagine. A few miles outside the Golden Gate to the South Bay it can go from square 6’ to 8’ waves to a mill pond. The Bay is very consistent for wind, waves and ground swell funnelling through the Golden Gate Bridge. Wash from the spectator boats did not have a great effect on the race course as the Bay is so busy with commercial traffic and ferries. The particularly bad sections were usually combinations of wind against tide.’

We asked Chris whether protecting equipment (mechanics / electrical / cameras) was a reason to slow down. He replied, ‘the Chase Boats have to follow the racing yachts so if the equipment could not take it we had to improve equipment. We asked Chris whether protecting the human body was a reason to slow down. He replied, ‘the Chase Boats have to follow the racing yachts so if the human body could not take it we had to improve the human body!!’

There is plenty that the military and professional fast boat sector can learn from this unique situation where craft are pushed to the limit for days and weeks. Congratulations to all the racers and support teams that made the 2013 Americas Cup an outstanding event and raised the bar for ‘power versus sail’.

By John Haynes AFNI
